Ubiquiti UniFi U7 Pro Access Point
Wi-Fi 7 Access Point for High-Density Enterprise Wireless
Six-stream tri-band Wi-Fi 7 access point delivering up to 5.8 Gbps on the 6 GHz band, powered over a single 2.5GbE PoE+ uplink and managed through the UniFi Network application — built for high-density offices and campus deployments.
Quick Specifications
- Wi-Fi Standard Wi-Fi 7 (802.11be); backward compatible with Wi-Fi 6E/6/5
- 6 GHz Radio 2x2 MU-MIMO, up to 5.8 Gbps (BW320)
- 5 GHz Radio 2x2 MU-MIMO, up to 4.3 Gbps (BW240)
- 2.4 GHz Radio 2x2 MU-MIMO, up to 688 Mbps (BW40)
- Uplink 1x 2.5 GbE RJ45
- Power PoE+ (802.3at), 21W max, 44–57V DC
Key Features
Wi-Fi 7 Performance

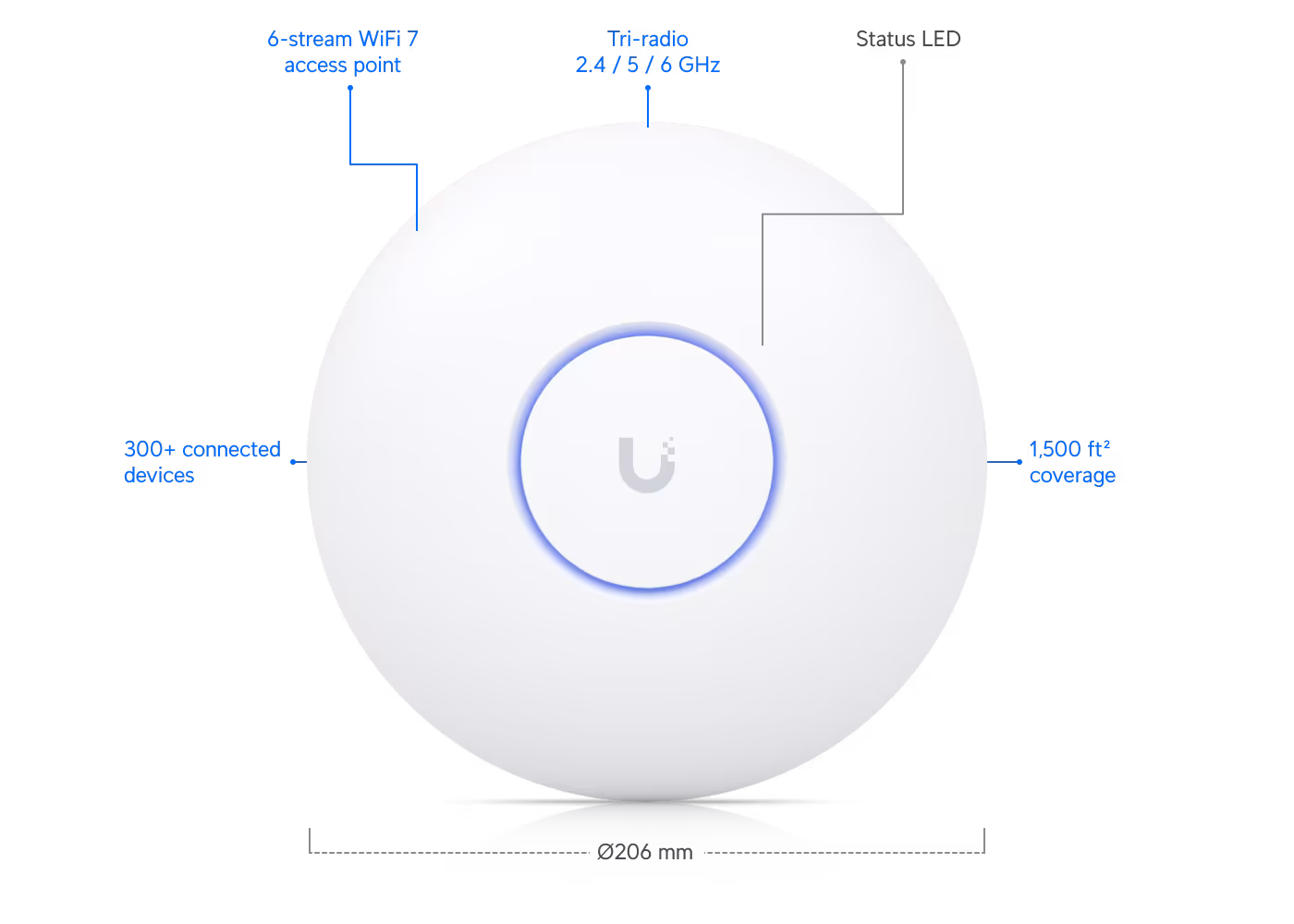

Six spatial streams across 2.4, 5 and 6 GHz radios with 2x2 MU-MIMO on each band, reaching up to 5.8 Gbps on the 6 GHz band.
Single-Cable PoE+ Install

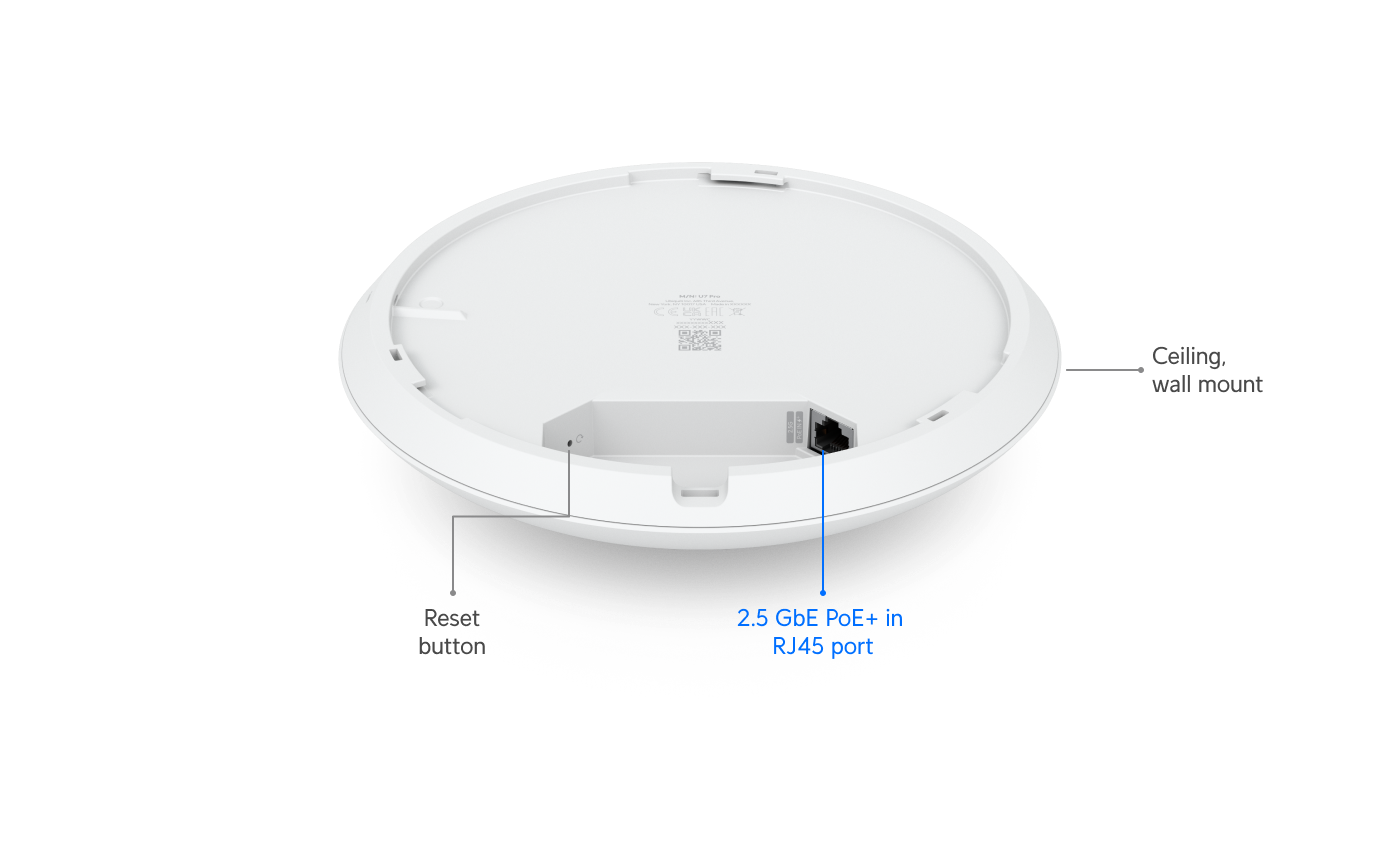

Powered over a single 2.5GbE PoE+ uplink, with a compact ceiling/wall Pro Mount included for fast installation.
High Client Density
Rated for 300+ concurrent clients and up to 8 BSSIDs per radio, suited to device-dense offices and open-plan floors.
UniFi Network Management

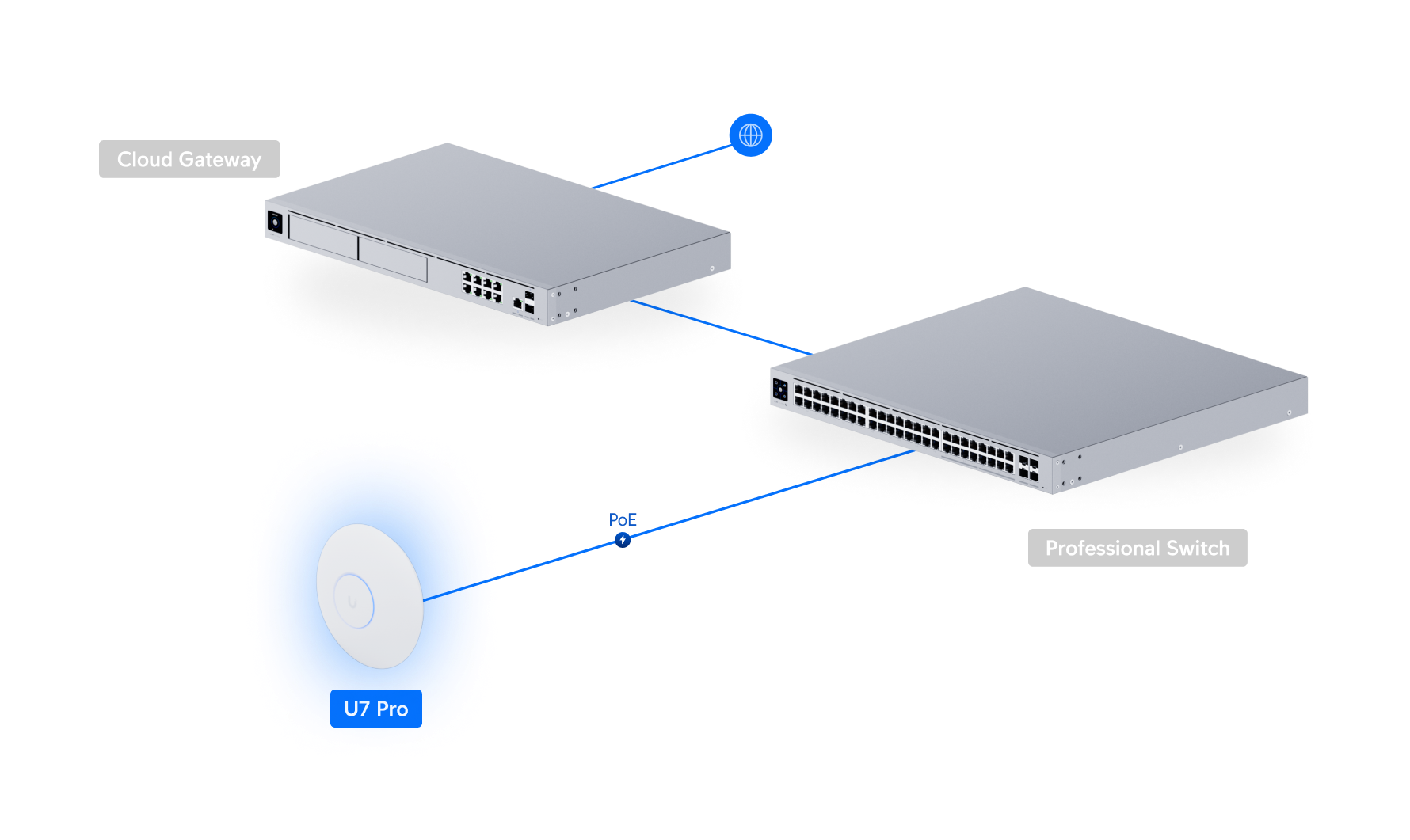

Adopts into the UniFi Network application (cloud-hosted or self-hosted) alongside UniFi switches, gateways and cameras.
Specifications
| Wi-Fi Standard | Wi-Fi 7 (802.11be); backward compatible with Wi-Fi 6E/6/5 |
| 6 GHz Radio | 2x2 MU-MIMO, up to 5.8 Gbps (BW320) |
| 5 GHz Radio | 2x2 MU-MIMO, up to 4.3 Gbps (BW240) |
| 2.4 GHz Radio | 2x2 MU-MIMO, up to 688 Mbps (BW40) |
| Uplink | 1x 2.5 GbE RJ45 |
| Power | PoE+ (802.3at), 21W max, 44–57V DC |
| Coverage / Clients | Up to 140 m² (1,500 sq ft) coverage, 300+ concurrent clients |
| Dimensions | ⌀206 x 46 mm (⌀8.1 x 1.8 in) |
| Weight | 680 g (1.5 lb) |
| Operating Temperature | -30°C to 40°C (-22°F to 104°F) |
| Management | UniFi Network application (cloud or self-hosted controller) |
Benefits
- Up to 5.8 Gbps max data rate on the 6 GHz band
- Single-cable PoE+ power and 2.5GbE uplink
- Compact ceiling or wall mount, included in the box
- Centralised management via the UniFi Network application
- NDAA-compliant hardware
Typical Applications
Common Use Cases
Full Technical Detail
Download the Full Datasheet
Complete specifications, integration reference and deployment guidance are provided in the product datasheet rather than on this page. It covers:
Why Unified Microsystems?
Unified Microsystems supplies and deploys UniFi access points as part of our structured cabling and managed Wi-Fi solutions, handling site design, UniFi Network onboarding and ongoing support, backed by regional stock availability and lead-time guidance.
