Ubiquiti UniFi U7 Pro Max Access Point
Flagship Wi-Fi 7 Access Point for Demanding Enterprise Networks
Eight-stream tri-band Wi-Fi 7 access point delivering up to 8.6 Gbps on the 5 GHz band with 4x4 MU-MIMO, PoE+ powering and UniFi Network cloud or self-hosted management — built for enterprise networks with the heaviest throughput demands.
Quick Specifications
- Wi-Fi Standard Wi-Fi 7 (802.11be); backward compatible with Wi-Fi 6E/6/5
- 6 GHz Radio 2x2 MU-MIMO, up to 5.8 Gbps
- 5 GHz Radio 4x4 MU-MIMO, up to 8.6 Gbps
- 2.4 GHz Radio 2x2 MU-MIMO, up to 688 Mbps
- Uplink 1x 1/2.5 GbE RJ45
- Power PoE+ (802.3at), 25W max, 44–57V DC
Key Features
Flagship Wi-Fi 7 Throughput
Eight spatial streams with 4x4 MU-MIMO on the 5 GHz radio reach up to 8.6 Gbps, the highest data rate in the UniFi Wi-Fi 7 access point line.
Single-Cable PoE+ Install

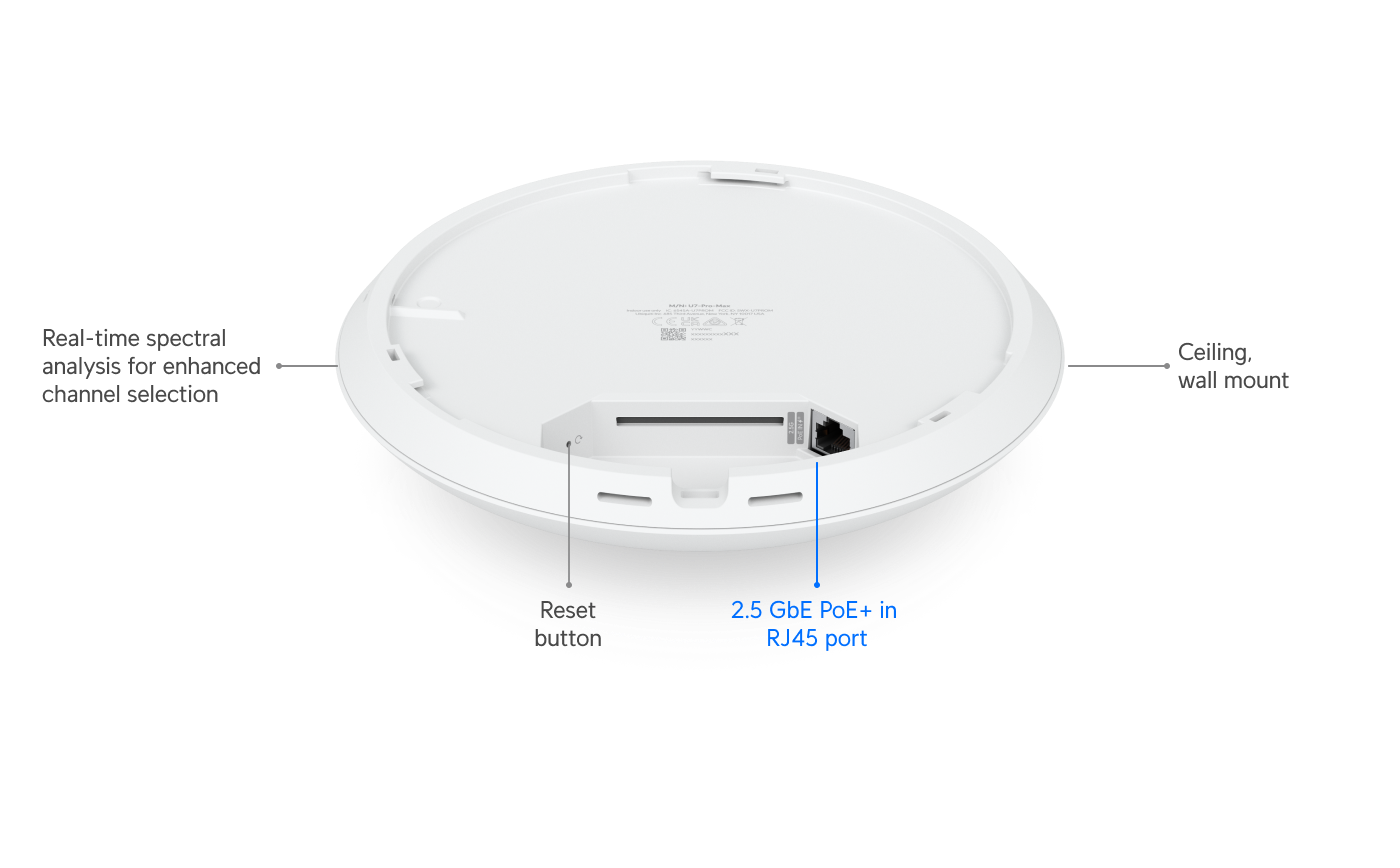

Powered over a single 2.5GbE PoE+ uplink, with a Pro Mount included for ceiling or wall installation.
Wider Operating Range
Rated from -30°C to 50°C, extending deployment into warmer plant rooms and outdoor-adjacent spaces compared to standard indoor APs.
UniFi Network Management

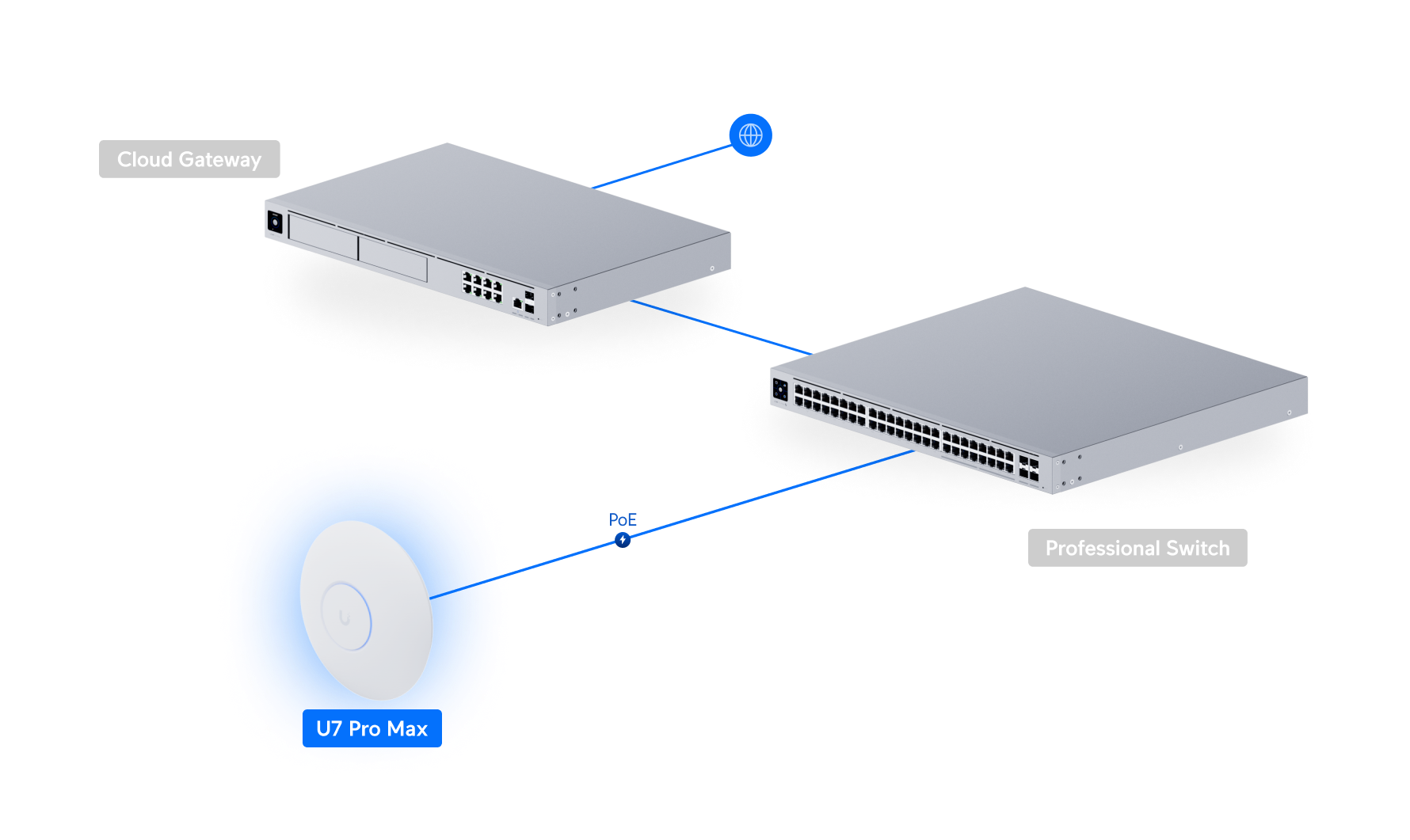

Adopts into the UniFi Network application (cloud-hosted or self-hosted) alongside UniFi switches, gateways and cameras.
Specifications
| Wi-Fi Standard | Wi-Fi 7 (802.11be); backward compatible with Wi-Fi 6E/6/5 |
| 6 GHz Radio | 2x2 MU-MIMO, up to 5.8 Gbps |
| 5 GHz Radio | 4x4 MU-MIMO, up to 8.6 Gbps |
| 2.4 GHz Radio | 2x2 MU-MIMO, up to 688 Mbps |
| Uplink | 1x 1/2.5 GbE RJ45 |
| Power | PoE+ (802.3at), 25W max, 44–57V DC |
| Coverage | Up to 160 m² (1,750 sq ft) |

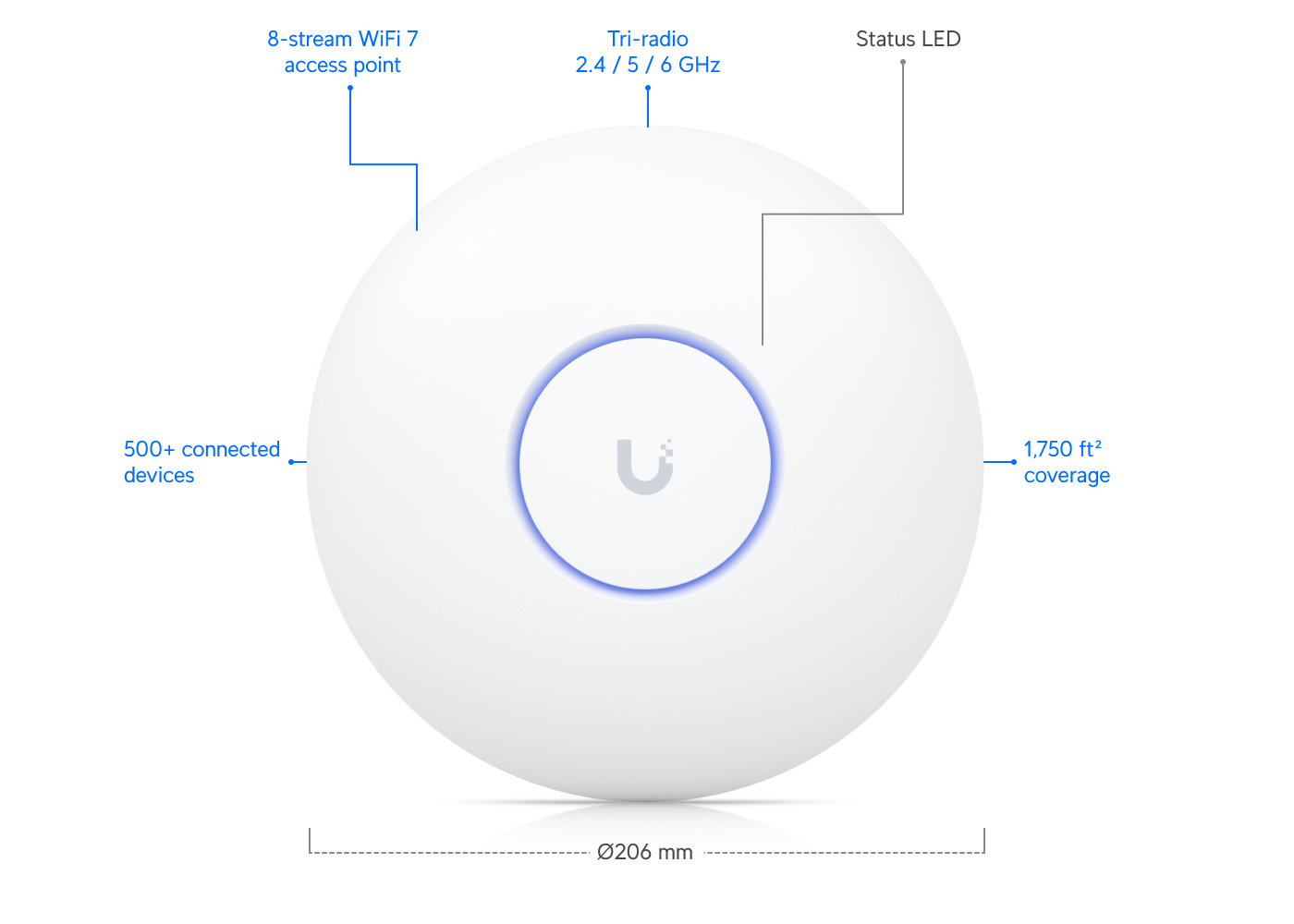

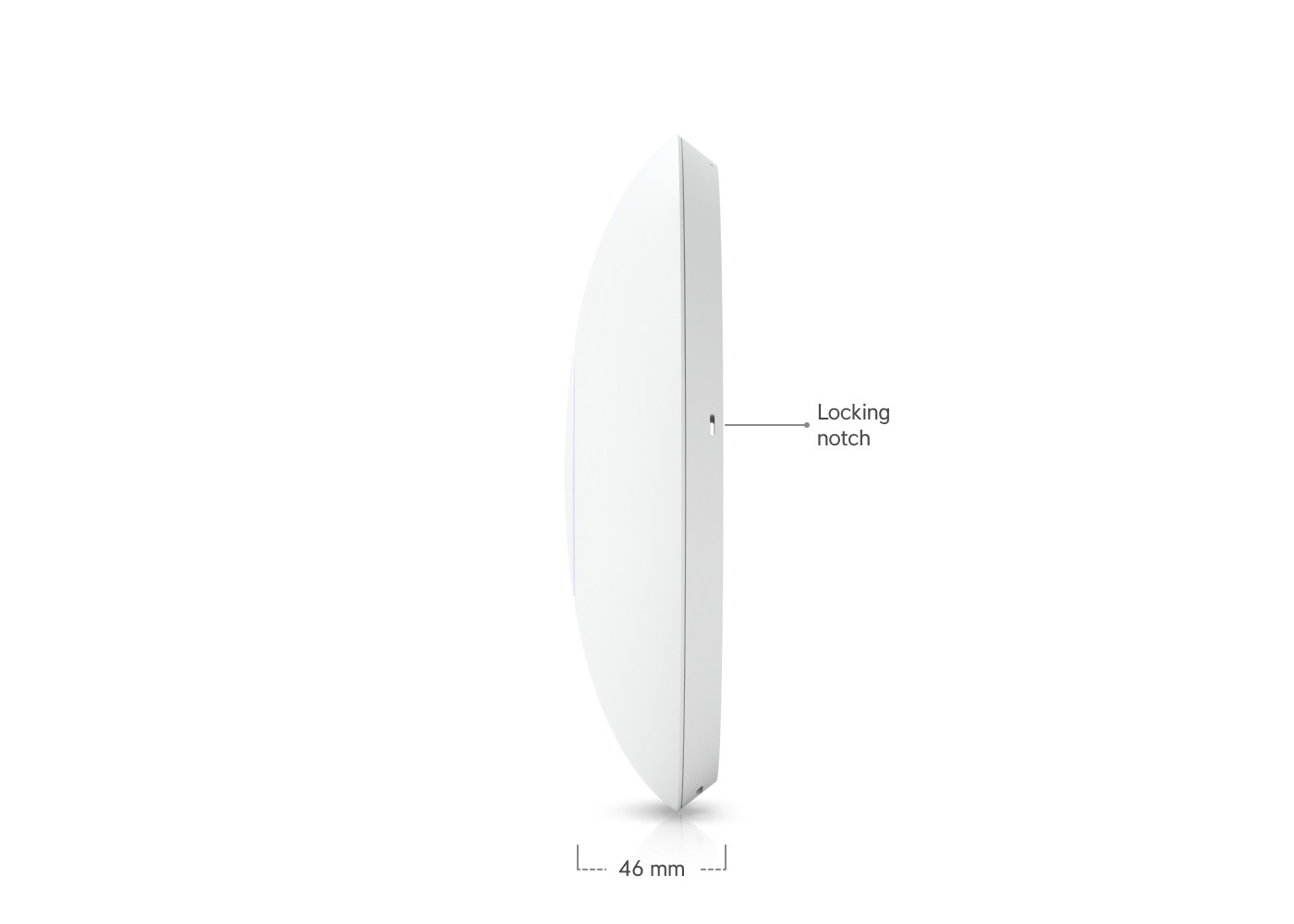

| Dimensions | ⌀206 x 46 mm (⌀8.1 x 1.8 in) |
| Weight | 680 g (1.5 lb) |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Management | UniFi Network application (cloud or self-hosted controller) |
Benefits
- Up to 8.6 Gbps max data rate on the 5 GHz band
- Eight spatial streams with 4x4 MU-MIMO
- Single-cable PoE+ power and 2.5GbE uplink
- Extended -30°C to 50°C operating range
- Centralised management via the UniFi Network application
- NDAA-compliant hardware
Typical Applications
Common Use Cases
Full Technical Detail
Download the Full Datasheet
Complete specifications, integration reference and deployment guidance are provided in the product datasheet rather than on this page. It covers:
Why Unified Microsystems?
Unified Microsystems supplies and deploys UniFi access points as part of our structured cabling and managed Wi-Fi solutions, handling site design, UniFi Network onboarding and ongoing support, backed by regional stock availability and lead-time guidance.
