Ubiquiti UniFi Switch Pro Max 24 PoE
Layer 3 Etherlighting Switch with 2.5GbE Access Ports
24-port Layer 3 Etherlighting switch mixing 1G and 2.5G PoE++ ports with 2x 10G SFP+ uplinks and up to 400W of PoE budget — built for higher-speed access points and multi-gig endpoints alongside standard PoE devices.
Quick Specifications

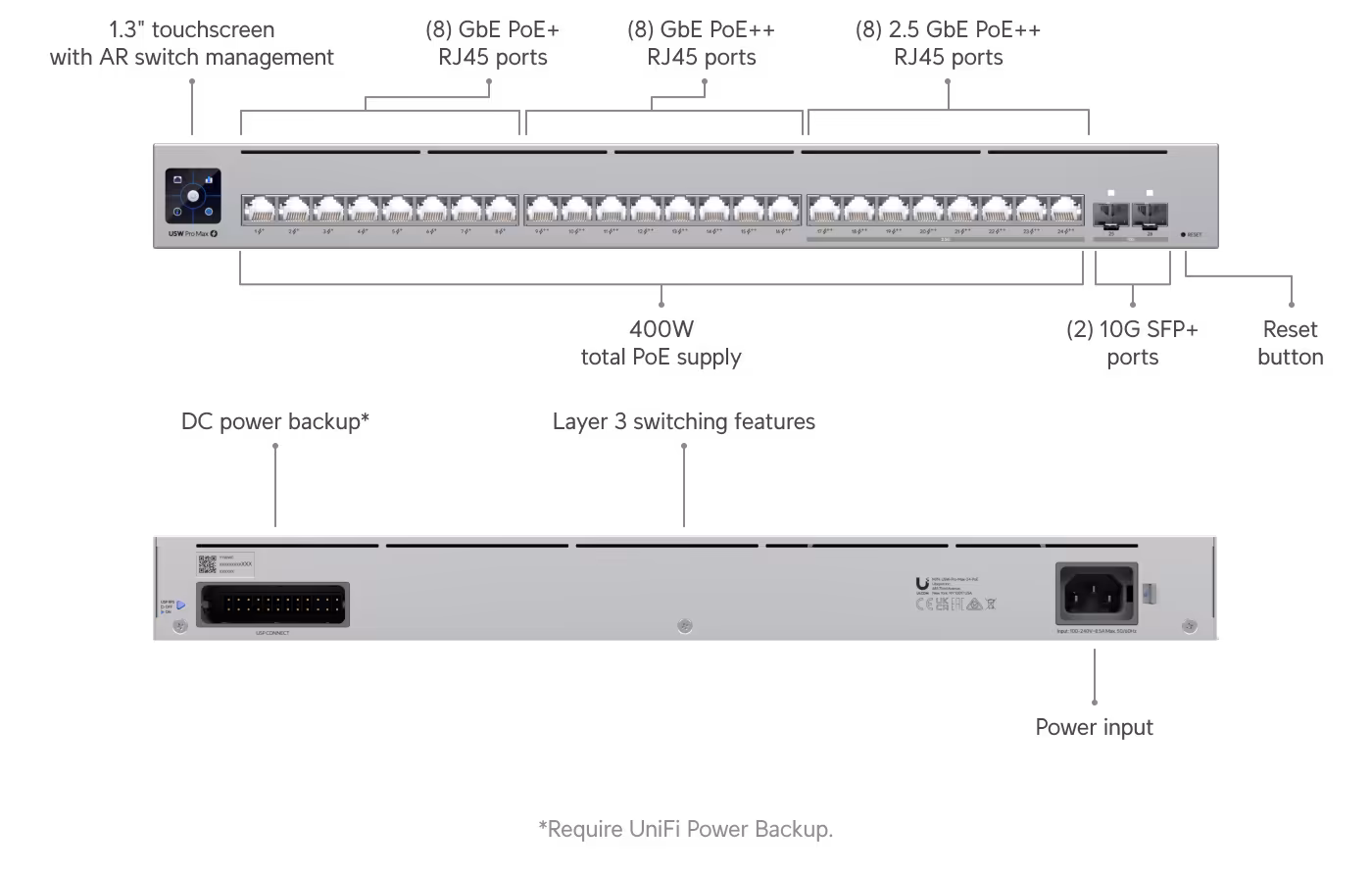

- Ports 16x RJ-45 1G (8 PoE+, 8 PoE++), 8x RJ-45 2.5G (all PoE++), 2x SFP+ 10G/1G
- PoE Budget Up to 400W total (PoE 15.4W / PoE+ 32W / PoE++ 60W per port)
- Switching Capacity 112 Gbps
- Throughput 56 Gbps non-blocking
- Power Consumption 50W excluding PoE, 450W including PoE (internal 550W AC/DC supply)
- Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7 in)
Key Features
Mixed 1G/2.5G PoE++ Ports
Eight 2.5GbE PoE++ ports support next-generation Wi-Fi 7 access points alongside sixteen standard 1GbE PoE+/PoE++ ports.
10G SFP+ Uplinks
Two 10G/1G SFP+ ports provide fiber or DAC uplink connectivity to a core switch or aggregation layer.
Layer 3 Etherlighting Switch
Supports Layer 3 routing features with Ubiquiti's Etherlighting per-port status visualisation.
Touchscreen Front Panel
A 1.3-inch LCM touchscreen displays port status and basic diagnostics directly on the unit.
UniFi Network Management
Adopts into the UniFi Network application alongside UniFi access points, gateways and cameras for unified management.
Specifications
| Ports | 16x RJ-45 1G (8 PoE+, 8 PoE++), 8x RJ-45 2.5G (all PoE++), 2x SFP+ 10G/1G |
| PoE Budget | Up to 400W total (PoE 15.4W / PoE+ 32W / PoE++ 60W per port) |
| Switching Capacity | 112 Gbps |
| Throughput | 56 Gbps non-blocking |
| Power Consumption | 50W excluding PoE, 450W including PoE (internal 550W AC/DC supply) |
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7 in) |
| Weight | 5.1 kg (5.2 kg with brackets) |
| Form Factor | 1U rack mount |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Management | UniFi Network application; 1.3-inch touchscreen LCM display |
Benefits
- Eight 2.5GbE PoE++ ports for multi-gig access points
- Up to 400W of PoE++ power across 24 ports
- 112 Gbps switching capacity with 10G SFP+ uplinks
- Layer 3 routing support
- Centralised management via the UniFi Network application
Typical Applications
Common Use Cases
Full Technical Detail
Download the Full Datasheet
Complete specifications, integration reference and deployment guidance are provided in the product datasheet rather than on this page. It covers:
Why Unified Microsystems?
Unified Microsystems supplies and deploys UniFi switches as part of our structured cabling and PoE infrastructure projects, handling PoE budget planning, network design and UniFi Network onboarding, backed by regional stock availability and lead-time guidance.
