Ubiquiti UniFi Switch Pro Max 48 PoE
Layer 3 Etherlighting Switch with 2.5GbE Access Ports at Scale
48-port Layer 3 Etherlighting switch mixing 1G and 2.5G PoE++ ports with 4x 10G SFP+ uplinks and up to 720W of PoE budget — built for larger sites standardising on multi-gig access points and endpoints.
Quick Specifications

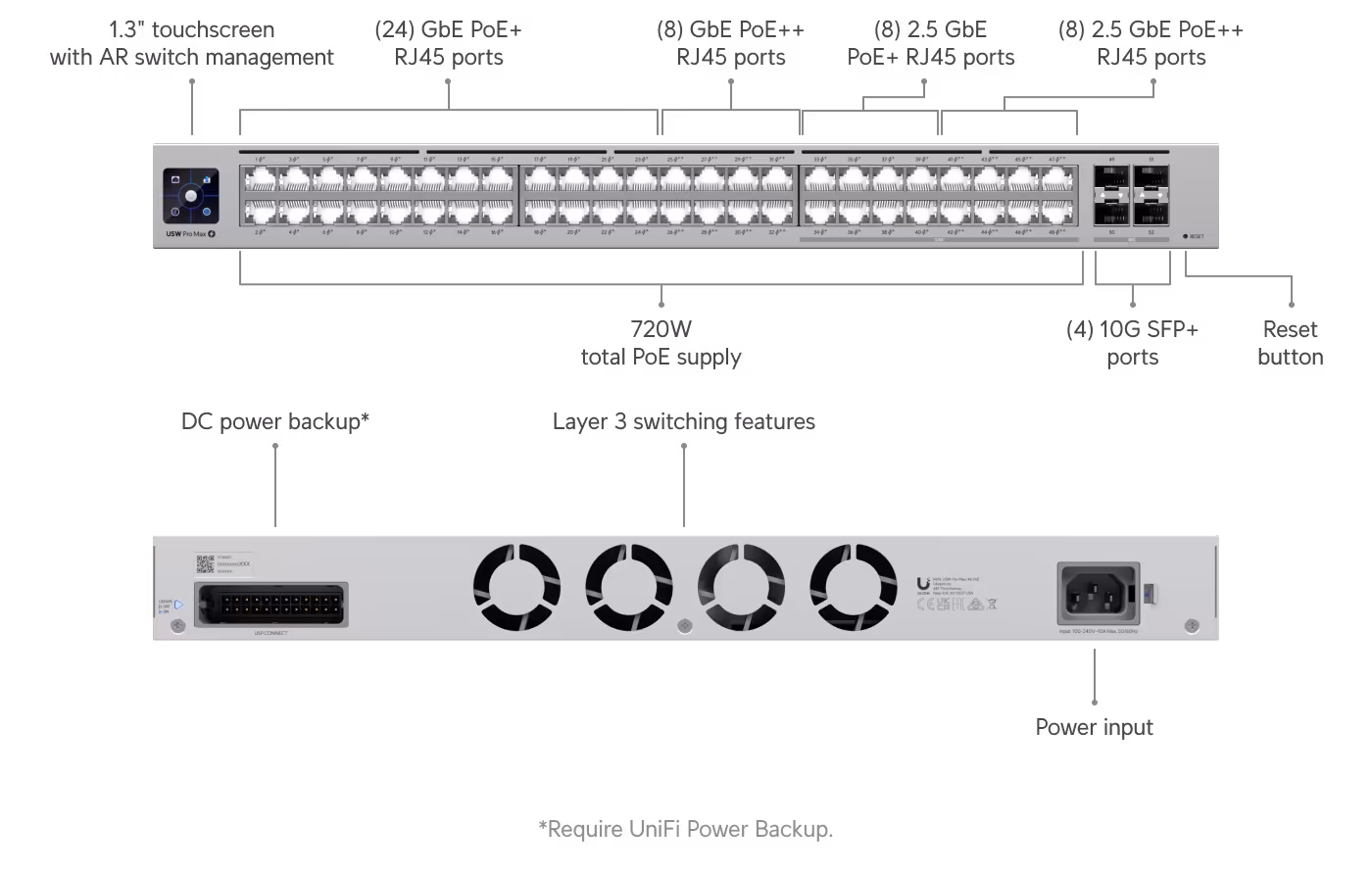

- Ports 32x RJ-45 1G (24 PoE+, 8 PoE++), 16x RJ-45 2.5G (8 PoE+, 8 PoE++), 4x SFP+ 10G/1G
- PoE Budget Up to 720W total (PoE 15.4W / PoE+ 32W / PoE++ 64W per port)
- Switching Capacity 224 Gbps
- Throughput 112 Gbps non-blocking, 167 Mpps forwarding rate
- Power Consumption 100W excluding PoE, 820W including PoE (internal 870W AC/DC supply)
- Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7 in)
Key Features
Mixed 1G/2.5G PoE++ Ports at Scale
Sixteen 2.5GbE PoE++/PoE+ ports support next-generation Wi-Fi 7 access points alongside thirty-two standard 1GbE ports.
720W PoE Budget
The largest PoE budget in the UniFi Pro Max line, powering a full 48-port wiring closet of multi-gig and standard PoE devices.
10G SFP+ Uplinks
Four 10G/1G SFP+ ports provide fiber or DAC uplink connectivity to a core switch or aggregation layer.
Layer 3 Etherlighting Switch
Supports Layer 3 routing features with Ubiquiti's Etherlighting per-port status visualisation.
UniFi Network Management
Adopts into the UniFi Network application alongside UniFi access points, gateways and cameras for unified management.
Specifications
| Ports | 32x RJ-45 1G (24 PoE+, 8 PoE++), 16x RJ-45 2.5G (8 PoE+, 8 PoE++), 4x SFP+ 10G/1G |
| PoE Budget | Up to 720W total (PoE 15.4W / PoE+ 32W / PoE++ 64W per port) |
| Switching Capacity | 224 Gbps |
| Throughput | 112 Gbps non-blocking, 167 Mpps forwarding rate |
| Power Consumption | 100W excluding PoE, 820W including PoE (internal 870W AC/DC supply) |
| Dimensions | 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7 in) |
| Weight | 6.2 kg (6.3 kg with brackets) |
| Form Factor | 1U rack mount |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Management | UniFi Network application; 1.3-inch touchscreen LCM display |
Benefits
- Sixteen 2.5GbE ports for multi-gig access points
- Up to 720W of PoE++ power across 48 ports
- 224 Gbps switching capacity with 10G SFP+ uplinks
- Layer 3 routing support
- Centralised management via the UniFi Network application
Typical Applications
Common Use Cases
Full Technical Detail
Download the Full Datasheet
Complete specifications, integration reference and deployment guidance are provided in the product datasheet rather than on this page. It covers:
Why Unified Microsystems?
Unified Microsystems supplies and deploys UniFi switches as part of our structured cabling and PoE infrastructure projects, handling PoE budget planning, network design and UniFi Network onboarding, backed by regional stock availability and lead-time guidance.
